Micro frontends for Enterprise Applications

Microservice architecture, also known as microservices, is a unique way of building software that focuses on single-function modules. These modules are built with well-defined interfaces and operations. In recent years, the microservices trend has picked up as enterprises have adopted a more agile way of building software.

The main benefit of microservices over monolithic architecture is the ability to make changes quickly to a single module or small piece of code. Think of the entire application as a small suite of services, each running its own process and deployed independently.

Taking a cue from the microservices trend, the Micro Frontends concept extends this approach for frontend development. The idea is to think of each website or web app as a collection of features owned by independent teams. Each team takes care of a specific area of business that it specialises in.

Here, you decompose the frontend into semi-independent, separate micro apps working loosely together.

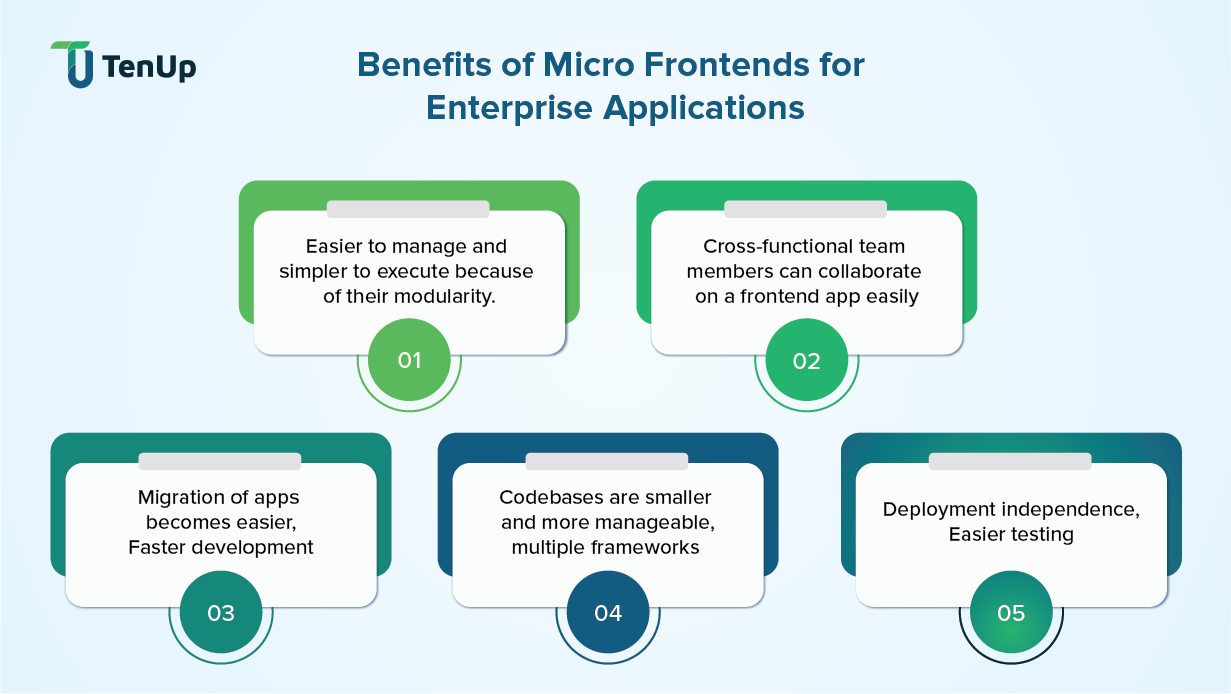

What are the benefits of Micro Frontends for Enterprise Applications?

1. Micro frontends are easier to manage and simpler to execute because of their modularity.
2. Cross-functional team members can collaborate on a frontend app easily.
3. Migration of apps becomes easier where you can have the “old” app and “new” app running side by side as you transition to the new app.
4. Monolith architecture does not bode well for larger web applications. The decoupled features and codebases make the management and update of larger applications or websites easier.
5. It supports the DevOps ideal of continuous development and continuous deployment. Even testing becomes simpler as every small change can be tested independently and quickly without having to touch the entire application.
6. Micro frontends support code and style isolation leading to faster development and scalability. The frameworks are also highly resilient.

Consider the above advantages in the context of an enterprise application. You are essentially working with a big monolithic application comprising several different products inside one project or product. Typically, organizations choose this model to start with and get the app up and running. Once the app scales up, teams grow and it is possible to have dedicated teams for each subset or module. With a micro frontends approach, they can get more independent teams and deployment and not rely on a single, gigantic release to roll out a new release or version.

Use case

Let’s look at the example of a food delivery website. It appears to be a fairly simple concept. However, it requires a great amount of detail and planning for a great customer journey.

It needs:

1. A landing page where customers can search for restaurants and browse their options. Ideally, they should be able to search and filter using multiple variables including cuisine, price, location, or order history.
2. Every restaurant has its own page on the website that displays the menu items in detail, enabling customers to choose what they want to eat, displaying discounts, deals and special requests.
3. Customers have their own profile page that can show their order history, track their delivery and choose from payment options.

As you can see, there are layers of complexity in each page that you can easily justify with a dedicated team for each page type. Each team must be able to work on their page-type or ‘product’ independently without relying on or conflicting with other teams. Yet, what the customer sees is a seamless, single experience.

To implement this, you can develop different frontends with decoupled codebases and release them through separate pipelines instead of a single large application. The main principle is the integration between the container or host and the multiple frontends. Here are some practical ways to achieve this:

Runtime integration

Using script tags, each micro frontend is included on the page and exposes a global function on loading as its entry point. It is the container application that decides which micro frontend needs to be mounted and pulls the relevant function to help render a micro frontend.

Developers can deploy each bundle.js file independently and have the freedom to build the integrations between various micro frontends as desired. For instance, you can use Single SPA which is a JavaScript framework for frontend microservices.

Build-time integration using components

You can also achieve the benefits of decoupled front ends by integrating components at build time and keeping a loosely coupled build pipeline for each front end. There are some additional advantages here including collaboration and code reuse. You can implement this with web components or any other component-based framework, for example, React.

You might wonder what happens when it comes to releasing pipelines that might not be decoupled from each other? It poses a potential challenge for teams who want to build and release their own ‘features’ or ‘frontends’. However, using modern tools like Bit you can unlock component-driven micro frontends.

A tool like Bit helps developers build and integrate individual features to compose pages and applications in build time, at the same time keeping the codebase and release pipelines decoupled.

Server Side composition

Micro frontends are cached at CDN, composed in a view and rendered either at build time or runtime. With this approach, the server composes a view, calls micro frontends and puts together the final page. If your page is personalised to a large degree, ensure that the server can handle and accommodate the multiple types of requests coming in from various clients. It would also be useful to delegate caching to the CDN where possible to create your template on the server-side, manage the page composition during runtime and integrate the page with personalised services.

Creating separate server responses for rendering and serving each frontend is an alternative approach. One server to be designated out the front for making requests to others. The latency challenge can also be managed with careful caching of responses.
